12/2 Heavy-Duty Submersible Pump Cable.





Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500ft Spool
1000ft Spool
Add a length

 Free Shipping on all orders over $1000

12/2 w/ Grnd Ice Blue Flat Jacketed Submersible Pump Cable

SKU
IBSP122WG

Product Details

Learn everything you want to know about this product to make an informed purchase

12 AWG 2 Conductor w/ Grnd Ice Blue Flat Jacketed Submersible Pump Cable

Applications:
For wiring within the casing of deep well submersible water pumps. Used in residential, farm and industrial water well applications.

Features:
Resistant to acid, abrasion, alkalis, flame, gas, and oil
Water resistant
Operating temperature range -65° C to 90° C
Sequential footage marking

Standard:
UL Listed as Deep Well Submersible Pump Cable.

Construction:

Conductors:
Annealed bare stranded copper conductors

Insulation:
Polyvinyl Chloride (PVC)

Jacket:
Blue PVC Jacket

Specifications*:

Size: 12 AWG
Number of Conductors: 2
Stranding: 65
Ground Wire Size: 12 AWG
PVC Insulation Thickness: 0.030 inches
Jacket Thickness: 0.030 inches
Nominal Cable Dimensions: 0.225 x 0.528 inches
Weight per foot: 0.093 lbs

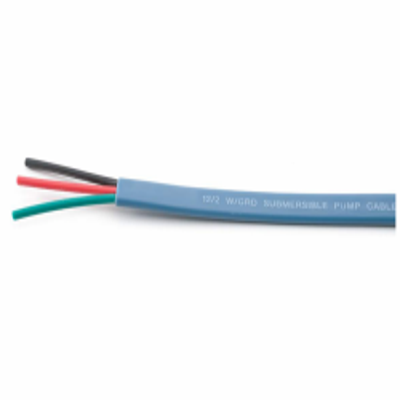

*Stock photo image displayed.  Please order based on product description.
*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size12 AWG
# of Conductors2 Conductors w/ Ground
Conductor MaterialBare Copper
Jacket ColorBlue
