Marine Grade, 10 Gauge Marine Wire, Tinned Copper Stranding
10 Gauge Marine Wire, Tinned Copper, UL 1426
Product DetailsLearn everything you want to know about this product to make an informed purchase
***THIS PRODUCT SHIPS WITHIN 2-3 BUSINESS DAYS. OVERNIGHT ORDERS DO NOT SHIP NEXT DAY***

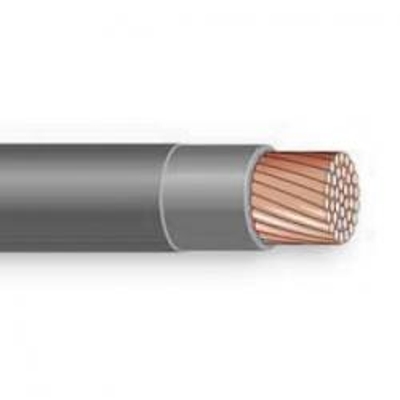

Marine Grade, 10 Gauge Marine Wire (Boat Cable) Tinned Copper Stranding, UL 1426. 500ft Spool
UL Listed, single-conductor tinned wire ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.
Standards: Meets DOT and Coast Guard specs for electrical systems
Size: 10 Gauge
Number of Strands: 105/30
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet
Jacket Material: Polyvinylchloride (PVC)
Outside Diameter: 0.190 inches
Weight: 0.042 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Wire Size||10 AWG|
|# of Conductors||1 Conductor|
