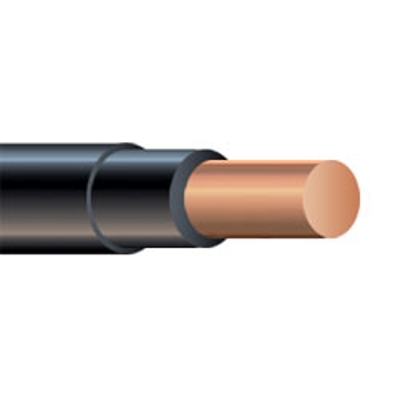

10 AWG XHHW Solid Building Wire 500 ft Spool

SKU XHW10S

$

0.520000

0.520000

/ft
How will you purchase this wire?
0.520000 0.520000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... ....

Multiple lengths can be selected

500
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

10 AWG XHHW Solid Building Wire 500 ft Spool

Grouped product items
Color Length (ft.)
Black Length 500 ft.
$260.00
Green Length 500 ft.
$260.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    XHHW-2

  • Type of Structure

    Residential, Commercial, Industrial

  • Wire Size

    10 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Bare Copper

  • Stranded or Solid

    Solid

  • O.D. (Inches)

    0.173

  • Ampacity

    30

  • Voltage

    600V

  • Temp. Rating

    90°C

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Direct Burial

    No

  • Location Use

    Wet, Dry

  • Indoor/Outdoor Use

    Indoor, Outdoor

  • Applications

    General purpose wiring for lighting & power

  • Standards

    UL Listed, c(UL) Listed, RoHS Compliant

  • Features

    Water Resistant, Oil & Gas Resistant, Heat Resistant, Moisture Resistant

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Applications:
Type XHHW-2/RW90 building wire is intended for general purpose applications utilized in conduit, underground in conduit, or other recognized raceways for services, feeders, and branch-circuit wiring as specified in the National Electrical Code (NEC). Type XHHW-2/RW90 is permitted for 600 volt applications and can be used in wet or dry locations at temperatures not to exceed 90ËšC. Suitable for applications requiring low-leaking circuits and a dielectric constant of 3.5 or less.

Features:
Available in sizes 14 AWG through 1000 KCMIL. On 250 KCMIL and larger, sequential foot markings located every foot for easy measuring. For 1 AWG through 4/0 AWG, sequential foot markings on master reels only unless otherwise specified. 6 AWG and larger rated Sunlight Resistant in all colors. 1/0 AWG and larger are rated for cable tray use and comply with IEEE 1202/FT4 (70,000 Btu/hr) flame test and ICEA T-29-520 (210,000 Btu/hr) flame test.

Standards:
Underwriters Laboratories Standard UL-44
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
Canadian Standards Association C22.2 No. 38
NEMA WC-70/ICEA S-95-658
NFPA 70: National Electrical Code (NEC)
UL 1685-FT4/IEEE 1202 (70,000 Btu/hr) Flame Test (1/0 AWG and larger)
ICEA T-29-520 (210,000 Btu/hr) Flame Test
ARRA 2009; Section 1605 "Buy American" Compliant

Construction:
Conductors:
Solid, uncoated copper conductors per ASTM-B3
Insulation:
Cross-linked polyethylene (XLPE) insulation per UL-44

Specifications*:

Size: 10 AWG
Number of Strands: Solid
Insulation Thickness XLPE: .76 mm / 0.030 inches
Outside Diameter: 4.39 mm / 0.173 inches
Weight: 0.039 lbs per ft
Allowable Ampacity: 30 Amps at 60ºC / 30 Amps at 75ºC / 30 Amps at 90ºC

*Data provided on this page is subject to change based on different manufacturers variances.
