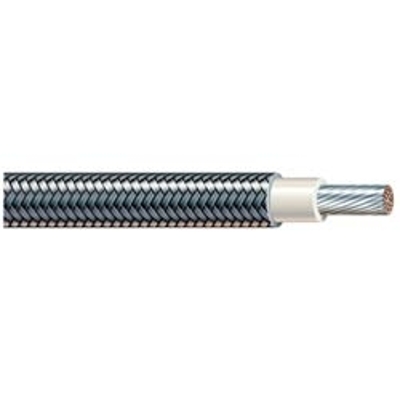

10 AWG SRML Wire, High Temperature Motor Lead Wire, UL 3070, 150C

10 AWG SRML Wire, High Temperature Motor Lead Wire, UL 3070, 150C
SKU SRML10

$

0.960000

0.960000

/ft
How will you purchase this wire?
0.960000 0.960000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

10 AWG SRML Wire, High Temperature Motor Lead Wire, UL 3070, 150C

Color Length (ft.) Price
Black

Length (ft.)

$0.96
add Add a length
Green

Length (ft.)

$0.96
add Add a length
White

Length (ft.)

$0.96
add Add a length
Red

Length (ft.)

$0.96
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$480.00
Green Length 500 ft.
$480.00
White Length 500 ft.
$480.00
Red Length 500 ft.
$480.00
Blue Length 500 ft.
$480.00
Black Length 1000 ft.
$960.00
Green Length 1000 ft.
$960.00
White Length 1000 ft.
$960.00
Red Length 1000 ft.
$960.00
Blue Length 1000 ft.
$960.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    SRML

  • Wire Size

    10 AWG

  • # of Conductors

    1 Conductor

  • Conductor Material

    Tinned Copper

  • Stranded or Solid

    Stranded

  • Number of Strands

    105

  • O.D. (Inches)

    0.227

  • Ampacity

    70

  • Voltage

    600V

  • Temp. Rating

    150°C

  • Insulation Material

    Silicone Rubber

  • Jacket Material

    Fiber Glass Braid

  • UL Style

    Style 3127, Style 3069, Style 3070

  • Standards

    UL Listed, CSA Certified

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put-ups.

Application:
SRML Wire is a high temperature wire used when high temperatures and abrasive environments are present. 10 AWG SRML Wire is suitable for use in 600V applications up to 150°C.

 Applicable Standards:

-  18-6 AWG meet the UL requirements for Styles 3069, 3070, 3101, 3123, 3127 (150°C),
 - CSA Type SEWF-2 (150°C)

Conductor:
 Tinned, annealed copper per ASTM B-33, Class H stranded per ASTM B-173 or Class K stranded per ASTM B-174

Insulation:
Silicone rubber

Jacket:
Fiberglass braid with a high temperature finishing

Specifications*:

Size: 10 AWG
Number of Strands: 105
Insulation Thickness: 0.045 inches
Braid Thickness: 0.005 inches
Outside Diameter: 0.227 inches
Weight: 0.053 lbs per ft
Ampacity: 70 Amps @
Voltage: 600 Volts
Max Temp: 150°C

*Data provided on this page is subject to change based on different manufacturers variances.
