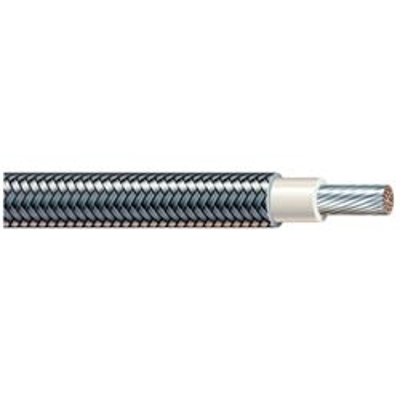

10 AWG SF-2, SEW-2 High Temperature Lead Wire, UL 3071, 200°C
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put-ups.
Application:
SF-2 & SEW-2 is a high temperature wire suitable for use in 600V applications up to 200°C.
Applicable Standards:
- UL approved as fixture wire as fixture wire (SF-2)
- UL Style 3231 & 3071
- CSA Type SEW-2
Conductor:
Tinned, annealed copper per ASTM B-33, Class B stranded per ASTM B-8
Insulation:
Silicone rubber
Jacket:
Fiberglass braid with a high temperature finishing
Specifications*:
Size: 10 AWG
Number of Strands: 19
Insulation Thickness: 0.045 inches
Braid Thickness: 0.005 inches
Outside Diameter: 0.217 inches
Weight: 0.052 lbs per ft
Ampacity: 60 Amps
Voltage: 600 Volts
Max Temp: 200°C/392°F
*Data provided on this page is subject to change based on different manufacturers variances.
| Cable Type | SF-2, SEW-2 |
|---|---|
| Wire Size | 10 AWG |
| # of Conductors | 1 Conductor |
| Conductor Material | Tinned Copper |
| Stranded or Solid | Stranded |
| Number of Strands | 19 |
| O.D. (Inches) | 0.217 |
| Ampacity | 60 |
| Voltage | 600V |
| Temp. Rating | 200°C |
| Insulation Material | Silicone Rubber |
| Jacket Material | Fiber Glass Braid |
| UL Style | Style 3231 |
| Standards | UL Listed, CSA Certified |
