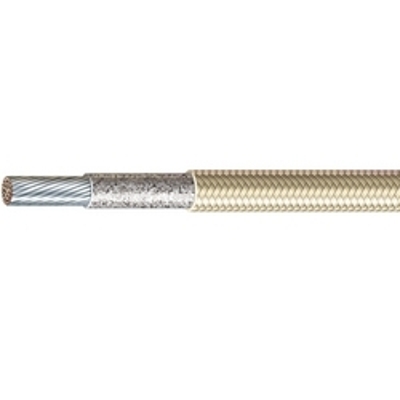

10 AWG MG Wire, High Temperature Wire, 450°C, UL 5335/5107
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put-ups.
Application:
Wiring of very high-temperature commercial or industrial equipment. Useful for high-temperature environments where lower-rated cables will not work adequately.
Applicable Standards:
- UL Listed for 450°C with a 538°C maximum (non UL), meets the UL requirements for AWM Style 5107/5335
Conductor:
Nickel Plated Copper
Insulation:
Mica glass composite insulation
Jacket:
Fiberglass braid jacket
Specifications*:
Size: 10 AWG
Number of Strands: 105
Insulation Thickness: 0.030 inches
Braid Thickness: 0.015 inches
Outside Diameter: 0.214 inches
Amps: 100 Amps
Weight: 0.051 lbs per ft
Voltage: 600 Volts
Max Temp: 450°C
*Data provided on this page is subject to change based on different manufacturers variances.
| Cable Type | MG |
|---|---|
| Wire Size | 10 AWG |
| # of Conductors | 1 Conductor |
| Conductor Material | Nickel Plated Copper |
| Stranded or Solid | Stranded |
| Number of Strands | 105 |
| O.D. (Inches) | 0.214 |
| Ampacity | 100 |
| Voltage | 600V |
| Temp. Rating | 450°C |
| Insulation Material | Mica Glass |
| Jacket Material | Fiber Glass Braid |
| UL Style | Style 5107/5335 |
| Standards | UL Listed |
