10 AWG MG DuraFlex Wire, High Temperature Wire, 550C

Min: 15 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

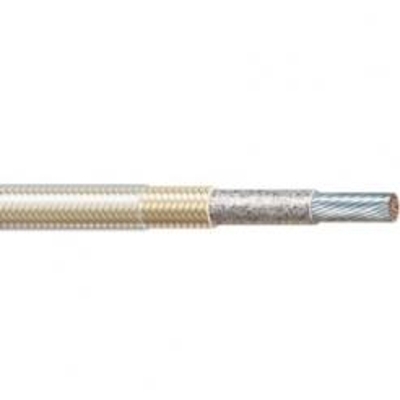

10 AWG MG DuraFlex Wire, High Temperature Wire, 550C

SKU
MGD10-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 25' to maximum 1000'. Please call for longer put-ups.

Features:
Outperforms UL 5128/5107 MGT products:
Unique insulation system offers outstanding heat-aged flexibility for longer service life.
Passes UL 2X mandrel test after heat aging (UL 5128/5107 is 3X mandrel).
Modified silicone jacket virtually eliminates dermatitis problems associated with handling fiberglass and braid fray.
550C temperature rating allows wire to be installed in extreme environments and reduces the cost of added thermal protection (glass sleeve, ceramic insulator, etc).
Excellent cutting and stripping characteristics, making it ideal for high volume manufacturing and assembly.
Provides dimensional consistency and uniformity.
Resists braid pushback.
Withstands mechanical abuse.

 Applicable Standards:
550°C – 600 Volts - UL 5400 / AWM I A/B FT1
ROHS Compliant

Conductor:
Nickel Plated Copper

Insulation:
Mica glass composite insulation

Jacket:
Fiberglass braid jacket

Specifications*:

Size: 10 AWG
Number of Strands: 105
Outside Diameter: 0.212 inches
Weight: 0.050 lbs per ft
Voltage: 600 Volts
Max Temp: 550°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeMG Duraflex
Wire Size10 AWG
# of Conductors1 Conductor
Conductor MaterialNickel Plated Copper
Stranded or Solid Stranded
Number of Strands105
O.D. (Inches)0.212
Voltage600V
Temp. Rating550°C
Insulation MaterialMica Glass
Jacket MaterialFiber Glass Braid
UL StyleStyle 5400
StandardsUL Listed
