Type GXL Wire, Bare Copper Stranding. 250', 500 or 1000' Spool

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
250 ft.
500 ft.
1000 ft.
Add a length

 Free Shipping on all orders over $1000

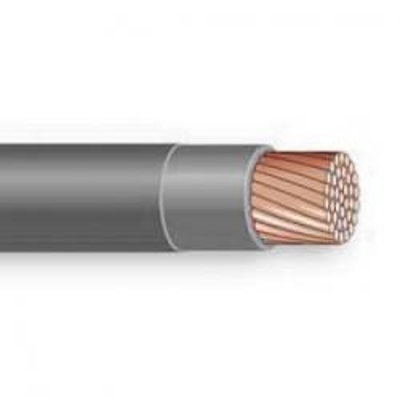

10 AWG GXL Automotive Primary Wire


Product Details

Learn everything you want to know about this product to make an informed purchase

10 AWG GXL Automotive Primary Wire, 50V, 250ft 500ft or 1000ft Spool.

Type GXL (special purpose cross-linked) XLPE automotive primary wire is for use in engine compartments where higher heat resistance is required according to SAE J1128.


Size: 10 AWG
Number of Strands: 19/23
Insulation: Cross-Linked Polyethylene
Temp: -40°C to 125°C
Voltage Rating: 50V
Insulation Thickness: 0.031 inches
Outside Diameter: 0.174 inches
Ford Spec: M1L-85B
Chrysler Spec: MS-8900
SAE Spec: SAE J1128

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size10 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
Number of Strands19
O.D. (Inches)0.174
Temp. Rating-40°C ~ 125°C
Insulation MaterialXLPE - Cross-linked Polyethylene
StandardsSAE J1128
