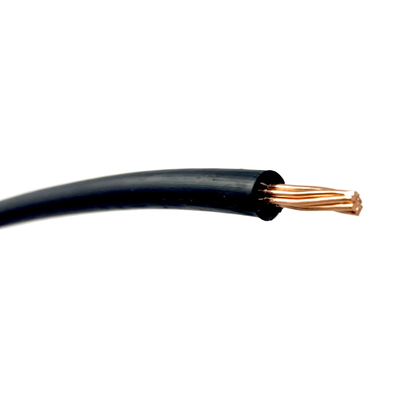

10 AWG Cathodic Protection Cable, 7 STR, HMWPE

SKU CPC10

$

0.800000

0.800000

/ft
How will you purchase this wire?
0.800000 0.800000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

50 100 500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

10 AWG Cathodic Protection Cable, 7 STR, HMWPE

Grouped product items
Color Length (ft.)
Black Length 50 ft.
$40.00
Black Length 100 ft.
$80.00
Black Length 500 ft.
$400.00
Black Length 1000 ft.
$800.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    10 AWG

  • # of Conductors

    1 Conductor

  • O.D. (Inches)

    0.34

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

10 AWG Cathodic Protection Cable, 7 STR, HMWPE, 500ft or 1000ft Spool

Applications:
Cathodic Protection Cable is used for direct earth burial DC feeder cable for cathodic protection systems, storage tanks, pipelines, wells, ocean vessels, and metallic structures buried or water submerged.


Standards:
2.1 ASTM B-1, B-3, B-8, B-33, B-172,and B-173 for soft drawn annealed copper conductors 2.2 ASTM D-1248, NEMA WC-5, ICEA S-61-402 for High Molecular Weight Polyethylene (HMWPE). 2.3 UL 83, UL 1581 and UL 2556

Conductors:
Single stranded copper conductors per UL83 and ASTM requirements.

Insulation:
The conductor shall be insulated with black, sunlight resistant polyethylene complying with the physical and electrical properties per ASTM D-1248, Type I, Class A thru D, Cat 4, and Grades E4-E5. Types II, III, and IV are available on request. The insulation shall be concentrically applied and the minimum at any point shall not be less than 90% of the specified average thickness. Rated at 75°C, 600 volts.

Specifications*:

Size: 10 AWG
Number of Strands: 7
Voltage: 600V
Temp: 75°C
Insulation Thickness: 0.110 inches
Outside Diameter: 0.39inches
Weight: 0.058 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.
