Double Jacket Drill Cord. 90°C, 600 Volt, MSHA Approved Remote Control & Drill Cord Cut to length - sold by the Foot.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

10 AWG 5/C Remote & Drill Cord Cable MSHA 600V

SKU
RDC105-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 10' to maximum 1000'. Please call for longer put ups.

Applications:
Industrial and light- to medium-duty mining applications, heavy-duty service as power supply cable, AC systems (grounded and ungrounded), heavy-duty and long service life applications, mobile and portable electrical equipment, motor and battery leads, applications where separating the system neutral from the frame ground is required.

Specifications:
Meets or exceeds the following:

ASTM S-75-381
ASTM B-3/B174
Passes MSHA Flame Test

Construction:

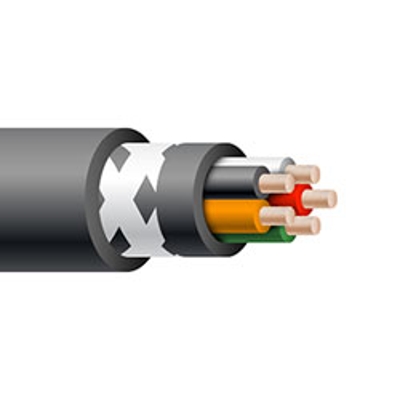

This cable consistst of five bare copper insulated cunductors cabled with a center rod filler and an overall two layer pressured jacket.

Specifications*:

Size: 10 AWG
Conductors: 5
Conductor Strand: 104/30
Insulation Thickness: 0.045 inches
Jacket Thickness: 0.188 inches
Outside Diameter: 0.910 inches
Weight per foot: 0.548 lbs
Current Amps: 20

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size10 AWG
# of Conductors5 Conductors
O.D. (Inches)0.91
Ampacity20
