$2.20 /ft.

In Stock

SJOOW Flexible Portable Cord. Cut to length - sold by the Foot.

Min: 20 ft., Max: 25000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

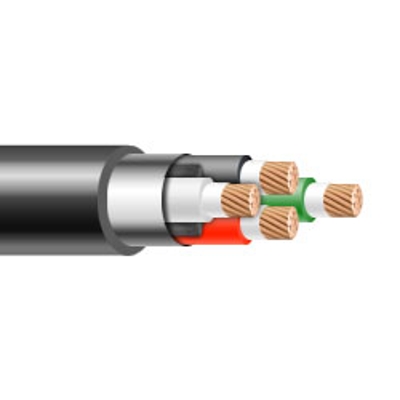

10/4 SJOOW Portable Cord 300V UL/CSA

SKU
SJO10s4-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black.

Applications:
SJOOW Flexible Portable Cord applications include portable tools and equipment, portable appliances, small motors and associated machinery.

Features:
Excellent resistance to oil and moisture. Good tensile strength, elongation and aging characteristics. High flexibility. Excellent abrasion resistance. Water-resistant. UL Listed and CSA Certified for indoor and outdoor use. Sunlight-resistant. Temperature range: -40ºC to +90ºC

Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant

Construction:
Conductors:
18 through 10 AWG fully annealed stranded bare copper per ASTM B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.

Specifications*:

Size: 10 AWG
Number of Conductors: 4
Conductor Strand: 104/30
Insulation Thickness: 1.14 mm / 0.045 inches
Outside Diameter: 16.64 mm / 0.655 inches
Weight: 0.305 lbs per ft
Current Amps: 25

Color Code:
4 Conductors: Black, White, Red, Green

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Cable TypeSJOOW - 300V
Wire Size10 AWG
# of Conductors4 Conductors
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)0.655
Ampacity 25
Voltage300V
Temp. Rating-40°C ~ 90°C
Insulation MaterialEPDM Rubber
FlexibilityHigh Flexibility
Indoor/Outdoor UseIndoor, Outdoor
ShieldedNo
StandardsUL Listed, CSA Certified, RoHS Compliant, MSHA Approved
FeaturesWeather Resistant, Water Resistant, Oil Resistant
Color CodeBlack, White, Red, Green
