Bus Drop Multiconductor Cable. Cut to length - sold by the Foot.
10/3C Bus Drop Cable
Product DetailsLearn everything you want to know about this product to make an informed purchase
2000V, 75°C (-20°C), Resistant to oils, lubricants, acids, alkalies, ozone, water and abrasion.
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 1000'. Please call for longer put ups.
Bus Drop Cable is intended for use in indoor or outdoor applications for connection of stationary or portable equipment to facilitate relocation of equipment. Rated for indoor and outdoor use in wet or dry locations.
- OSHA acceptable
- RoHS Compliant
- UL Listed
- -20°C to 75°C - #14-#8
- -20°C to 60°C - #6-#2
Fully annealed stranded bare copper per ASTM B-8 or ASTM B-172.
Premium grade PVC

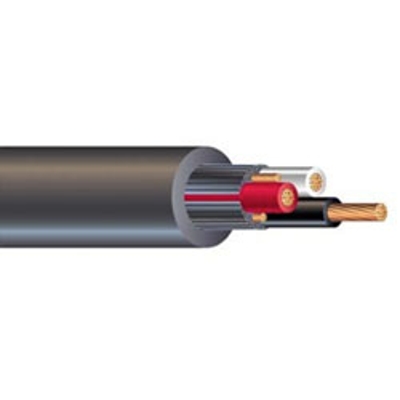

The conductors are insulated with Premium-grade, PVC insulation with a clear nylon jacket and are colored black, white, and red. The conductors and ground wires along with paper or polypropylene fillers are cabled for flexibility then wrapped with a mylar separator to aid strippability. The cable is covered with a gray PVC jacket.
Size: 10 AWG
Number of Conductors: 3
Conductor Strand: 19
CGround Wires: 3 x 14
Nominal Insulation Thickness: 0.030 inches
Nominal Jacket Thickness: 0.045 inches
Outside Diameter: 0.470 inches
Net Weight: 0.215 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||Bus Drop Cable|
|Wire Size||30 AWG|
|# of Conductors||3 Conductors w/ 3 Grounds|
|Conductor Material||Bare Copper|
