10/2 Duplex Brake Cable

SKU DBC10s2

$

1.000000

1.000000

/ft
How will you purchase this wire?
1.000000 1.000000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

10/2 Duplex Brake Cable

Color Length (ft.) Price
N/A

Length (ft.)

$1.00
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$500.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Cable Type

    Brake Cable

  • Wire Size

    10 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.257 x 0.434 in.

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

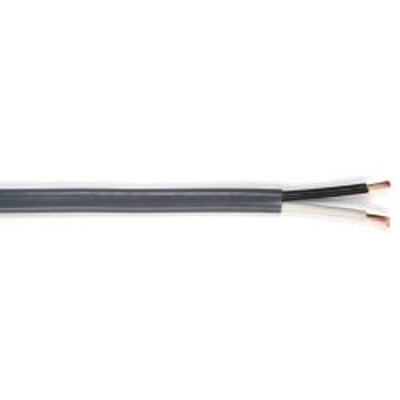

10/2 Duplex Brake Cable

Applications:
Two-conductor, general-purpose primary wires covered in a high quality PVC jacket. Especially ideal for use in truck, bus, tractor, light-duty boats, and general service applications. Heavy-duty compact cable protects insulated conductors against weathering, chemicals, and abrasion. Color-coded conductors enable easy identification.

Standards: Inner wires meet SAE J1128, SAE J378

Color Code:
2 Conductors: Black/White

Specifications*:

Size: 10 Gauge
Conductors: 2
Number of Strands: 19/23
Jacket Color: Gray
Jacket Material: Polyvinylchloride (PVC)
Voltage: 60V or less
Temp: Rated at –30°C (–22°F) to 105°C (221°F)
Outside Diameter: 0.257 x 0.434 inches
Weight: .105 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.
