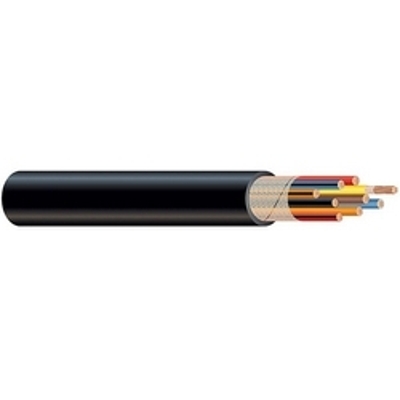

20/10 Control Cable, 10 AWG 3 Conductor, Unshielded, PE/PVC, 600V
Product Details
Learn everything you want to know about this product to make an informed purchase20/10 Control Cable, 10 AWG 12 Conductor, Unshielded, PE/PVC, 600V
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.
Color:
Black
Applications:
For use in control circuits for utility substations, and various operating, relaying, telemetering, indicating, signalling and measuring circuits for industrial plants and processes. Suitable for use in duct, conduit and aerially.
Standards:
Finished cable meets ICEA S-73-532 (NEMA WC57) requirements
Conductor:
Bare soft annealed copper per ASTM B-3, conductors are Class B concentric strand in accordance with ASTM B-8
Insulation:
20 mils of high molecular weight polyethylene (HMWPE), covered with 10 mils of color-coded Polyvinyl Chloride (PVC)
Overall Jacket:
Polyvinyl Chloride (PVC)
Color Code:
ICEA Method 1, Table E-1 (formerly K-1)
Black, White, Red, Green, Orange, Blue, White/Black,Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White
Specifications*:
Size: 10 AWG
Number of Conductors: 12
Outside Diameter: 0.912 inches
Temp: 75ºC
Voltage: 600V
Weight: 0.691 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Wire Size | 10 AWG |
| # of Conductors | 12 Conductors |
| O.D. (Inches) | 0.912 |
| Shielded | No |
