1 Gauge Tinned Marine Battery Cable, UL 1426

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
100 ft. Spool
Yellow
Add a length

 Free Shipping on all orders over $1000

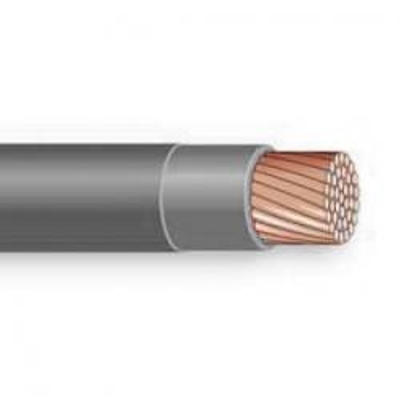

1 Gauge Tinned Marine Battery Cable, UL 1426

SKU
MGBC1

Product Details

Learn everything you want to know about this product to make an informed purchase

***SHIPS WITHIN 2-3 BUSINESS DAYS***

1 Gauge Tinned Marine Battery Cable, UL 1426, 100ft Length

Applications:
UL Listed, single-conductor tinned wire ideal for use in the high corrosive environment of marine applications. Special electro-tinned, copper strands also increase protection against corrosion for recreational vehicles, automotive, trucks, and trailers. Tinned copper stranding is extremely flexible for easy routing through marine applications and easier to solder than bare copper. Flame retardant, PVC insulation is highly resistant to water, oil, grease, gasoline, and other damaging solvents. High voltage tolerance of up to 600 volts adds to versatility to its use in multiple marine and other suitable applications.

Standards:
Wire meets UL 1426 for Boat Cable – BC-5W2
RoHS Compliant
Meets DOT, U.S. Coast Guard CFR 33, U.S. Coast Guard, CFR 46, ABYC (American Boat and Yacht Council), and NMMA (National Marine Manufacturers Association) specifications for electrical systems

Specifications*:

Size: 1 Gauge
Number of Strands: 7 x 44/30
Voltage: 600Volts
Temp: Rated at 105°C (221°F) dry and 75°C (167°F) wet

Jacket Material: Polyvinylchloride (PVC)
Outside Diameter: 0.520 inches
Weight: 0.36 lbs per ft.

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size1 AWG
# of Conductors1 Conductor
O.D. (Inches)0.520 in.
