$0.80 /ft.

In Stock

600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulated Wire

Min: 50 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

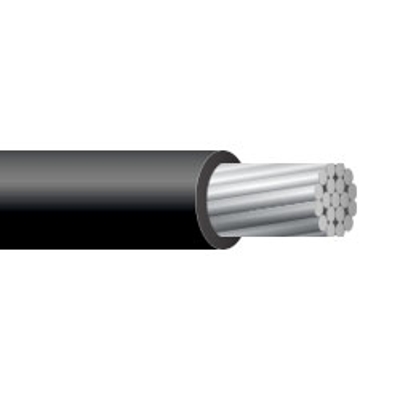

1 AWG Aluminum XLP/USE-2 Building Wire

SKU
XLPAL1-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut by the foot.

Rated for Direct Burial
600 V Aluminum Alloy Conductor, UL recognized cross-linked Polyethylene Insulation XLPE

Application:
USE-2 cables are primarily used for power distribution, in raceways in accordance with National Electrical Code, except that the cable is not rated for use in cable tray. USE-2 is approved for direct burial and for service entrance below ground. USE-2 cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for USE-2 cable is 600V

Applicable Standards:
USE-2 meets or exceeds the following standards
UL 44
Requirements of the National Electrical Code
ASTM standards B 800, B 801
Sunlight resistant

Conductor:
USE-2 conductor is a compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM

Insulation:
USE-2 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE

Specifications*:

Size: 1 AWG
Number of Strands: 18
Insulation Thickness: 0.080 inches
Outside Diameter: 0.462 inches
Weight: 0.126 lbs per ft
Ampacity: 105 Amps at 30°C

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Cable TypeXLP/USE-2 or RHH/RHW-2
Wire Size1 AWG
# of Conductors1 Conductor
Conductor MaterialAluminum
Stranded or SolidStranded
O.D. (Inches)0.462
Ampacity105
Voltage600V
Temp. Rating-40°C ~ 90°C
Insulation MaterialXLPE - Cross-linked Polyethylene
Direct BurialYes
Sunlight ResistantYes
Location UseWet, Dry
Indoor/Outdoor UseIndoor, Outdoor
StandardsUL Listed, RoHS Compliant
