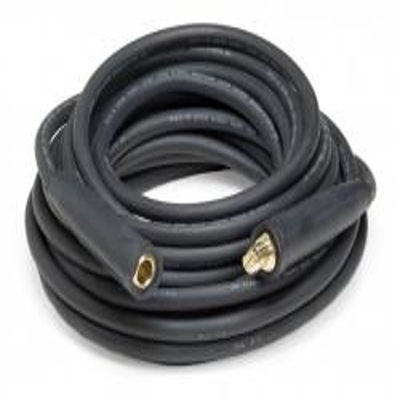

1 AWG Welding Cable Lead w/ Tweco Male & Female Connectors, 25ft, 50ft or 100ft

Min: 10 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
25 ft.
50 ft.
100 ft.
Add a length

 Free Shipping on all orders over $1000

1 AWG Welding Cable Lead w/ Tweco 1 MPC M/F Connectors, 25ft, 50ft or 100ft

SKU
WCL1M-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

***SHIPS WITHIN 3-4 BUSINESS DAYS FROM THE FACTORY***

1 AWG Welding Cable Lead w/ Tweco Male & Female Connectors, 25ft, 50ft or 100ft

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
1 Gauge Welding Lead, 1 AWG Welders Lead

Features:
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.

Jacket:
EPDM jacket.  Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper

Connectors:
1 Tweco 1MPC Male Black Connector and 1 Female Tweco 1 MPC Black Connector

Specifications*:

Size: 1 AWG
Conductor Strand: 777/.010
Outside Diameter: .503 inches
Weight: 0.310 lbs per ft
Current Amps: 250/300
Resistance Ohms/1000': .139



More Information
StockedYes
Wire Size1 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or Solid Stranded
O.D. (Inches)0.503
