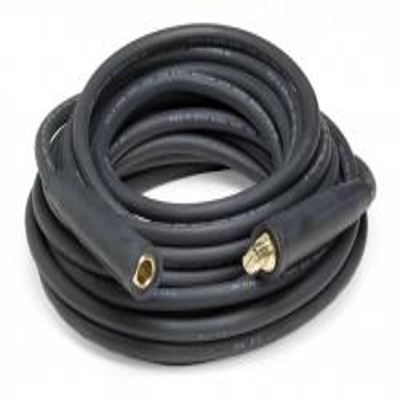

1 AWG Welding Cable Lead w/ Lenco Male & Female Connectors, 50ft Lead
Product Details
Learn everything you want to know about this product to make an informed purchase1 AWG Welding Cable Lead w/ Lenco Male & Female Connectors, 50ft Lead
Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
1 Gauge Welding Lead, 1 AWG Welders Lead
Features:
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.
Jacket:
EPDM jacket. Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.
Standards:
RoHS Compliant
Conductor:
Fully annealed stranded bare copper
Connectors:
1 Lenco LC10 Male Black Connector and 1 Female Lenco LC10 Black Connector
Specifications*:
Size: 1 AWG
Conductor Strand: 777/.010
Outside Diameter: .503 inches
Weight: 0.310 lbs per ft
Current Amps: 250/300
Resistance Ohms/1000': .139
| Wire Size | 1 AWG |
|---|---|
| # of Conductors | 1 Conductor |
| Conductor Material | Bare Copper |
| Stranded or Solid | Stranded |
| O.D. (Inches) | 0.503 |
