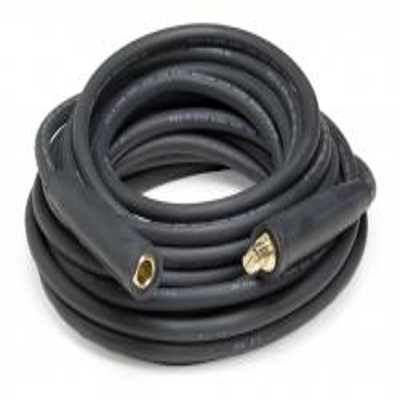

1 AWG Welding Cable Lead w/ Lenco Male & Female Connectors, 100ft Lead

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

1 AWG Welding Cable Lead w/ Lenco LC10 M/F Connectors, 100ft Lead

SKU
WCL1MFL100

Product Details

Learn everything you want to know about this product to make an informed purchase

1 AWG Welding Cable Lead w/ Lenco Male & Female Connectors, 100ft Lead

Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.

Also Known As:
1 Gauge Welding Lead, 1 AWG Welders Lead

Features:
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.

Jacket:
EPDM jacket.  Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.

Standards:
RoHS Compliant

Conductor:
Fully annealed stranded bare copper

Connectors:
1 Lenco LC10 Male Black Connector and 1 Female Lenco LC10 Black Connector

Specifications*:

Size: 1 AWG
Conductor Strand: 777/.010
Outside Diameter: .503 inches
Weight: 0.310 lbs per ft
Current Amps: 250/300
Resistance Ohms/1000': .139

More Information
Wire Size1 AWG
# of Conductors1 Conductor
Conductor MaterialBare Copper
Stranded or SolidStranded
O.D. (Inches)0.503
