$2.60 /ft.

In Stock

Stage Lighting Cable. Cut to length - sold by the Foot.

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

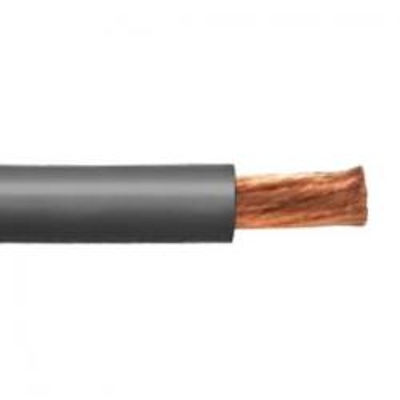

1 AWG Stage Lighting Cable UL/CSA

SKU
SLC1-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Minimum 1' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Portable power systems. Entertainment industry activities such as theater, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems. Other similar applications that would require temporary power.

Features:
Water-resistant. Sunlight-resistant. Designed to withstand severe environmental conditions. Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals. Meets or exceeds flame test requirements of MSHA, CSA and UL. 600V Rated.

Jacket:
Temperature range: -50ºC to +105ºC

Standards:
UL Listed
CSA Certified
RoHS Compliant

Conductor:
Fully annealed stranded bare copper per ASTM B-172

Specifications*:

Size: 1 AWG
Conductor Strand: 836/30
Outside Diameter: 14.73 mm / 0.580 inches
Weight: 0.375 lbs per ft

What is the ampacity of 1 AWG Stage Lighting Cable?  220 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size1 AWG
# of Conductors1 Conductor
O.D. (Inches)0.58
Ampacity220
