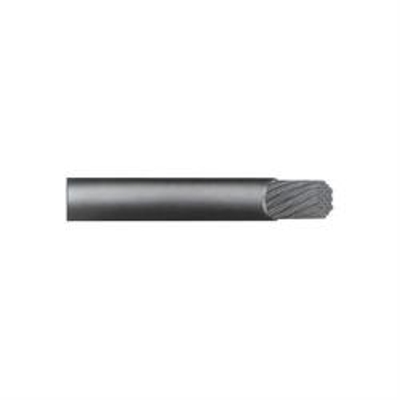

1 AWG Exane 1068A Cable, 600V

Min: 25 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

1 AWG Exane 1068A Transit Cable, 600V

SKU
EX10681-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for different colors or longer put ups.

Applications:
Exane®-1068A transit wire is a tough, flame retardant construction ideally suited for rugged transportation industry applications. It has a high temperature rating yet will not crack at temperatures down to -55°C. Exane® transit wire has much better resistance to cut-through, crush, and scrape abrasion than rubber, EPR, Neoprene and Hypalon. It is also more flexible and has better overload characteristics than fluoropolymers. Exane® transit wire has good moisture and oil resistance, excellent fire resistance, and low smoke and acid gas generation characteristics.

Features:
Wide temperature range –55°C to 110°C*
Thermoset Insulation
Superior mechanical properties
Flexible construction
Flame retardant
Excellent fluid/oil resistance
Moisture and sunlight resistant

Specifications:
Meets AAR RP-585/S-501Insulation IAW ICEA S-66-524 (S-95-658)
Passes NFPA 130-2014
Meets requirements of UL 1685 (FT4/IEEE 1202 with smoke measurement)
Meet the requirements of 49 CFR Part 238 for flame and smoke requirements (ICEA S-19-81)
Meet the requirements of ASTM E662 in flaming and non-flaming modes
Meet the transit toxicity requirements when tested in accordance with BSS 7239
Passes UL VW-1 flame test
Passes IEEE-383 1974 vertical tray flame test

Conductor:
Annealed, Tinned copper per ASTM B33, B172, AAR S-501, and AAR RP-585

Conductor:
Crosslinked polyolefin, Exane® (colors – as required)

Specifications*:

Size: 1 AWG
Conductor Strand: 225/24
Insulation Thickness: 0.055 inches
Outside Diameter: 0.501 inches
Weight: 0.347 lbs per ft
Ampacity**: 247 @ 110°C


*Data provided on this page is subject to change based on different manufacturers variances.
**These ampacities are based on single conductors in air with an ambient of 40°C and conductor temperature of 110°C.

More Information
StockedYes
Wire Size1 AWG
# of Conductors1 Conductor
O.D. (Inches)0.501
Ampacity 247
