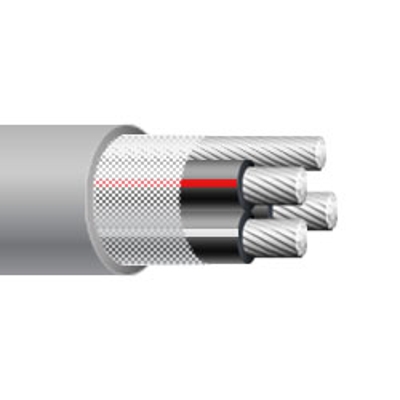

1-1-1 Aluminum SER Cable w/ 3AWG Ground
Product DetailsLearn everything you want to know about this product to make an informed purchase
SER is type SE, Style R cable, used as an above ground service entrance cable, a panel feeder and in branch circuits. The cable is rated at 600 volts and 90_C for use in wet and dry locations. SER cables are LEAD FREE and RoHS compliant.
Conductor - Compact stranded AA-8000 series aluminum alloy (ACM) per ASTM B801 or B836. #8 AWG is solid AA-8000 series aluminum alloy (ACM) per ASTM B800.
Insulation - Color coded cross-linked polyethylene (XLPE).
Assembly - Insulated conductors are cabled with the bare ground wire. A flame retardant fiberglass reinforced binder tape assembles the core in a circular configuration.
Jacket - Sunlight resistant, LEAD FREE, flame retardant, gray polyvinyl chloride (PVC) material.
Insulated Conductor Size: 1 AWG
Insulation Thickness: 0.055 inches
Bare Neutral Size: 3 AWG (7)
Jacket Thickness: 0.030 inches
Outside Diameter: 0.97 inches
Ampacity amps 110
Net Weight: 0.45 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||Service Entrance Cable|
|Type of Structure||Residential, Commercial|
|Wire Size||1 AWG|
|# of Conductors||3 Conductors w/ Ground|
|Ground Size||3 AWG|
|Stranded or Solid||Stranded|
|Insulation Material||XLPE - Cross-linked Polyethylene|
|Jacket Material||PVC - Polyvinyl Chloride|
|Location Use||Wet, Dry|
