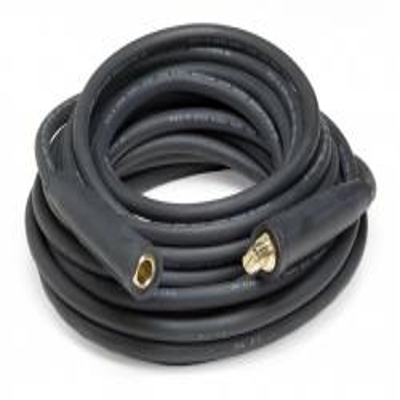

1/0 Welding Cable Lead w/ Lenco Male & Female Connectors, 50ft Lead
Product Details
Learn everything you want to know about this product to make an informed purchase1/0 Welding Cable Lead w/ Tweco Male & Female Connectors, 50ft Lead
Applications:
Secondary voltage resistance welding leads. Power supply applications not exceeding 600 volts AC.
Also Known As:
1/0 Welding Lead, 1/0 Welders Lead
Features:
Rugged jacket, good flexibitlty. Multiple colors available. Resists abrasion, cut, tear, flame, grease, oil & water.
Jacket:
EPDM jacket. Temperature range: -50ºC to +105ºC. Black, blue, green, red, yellow colors available.
Standards:
RoHS Compliant
Conductor:
Fully annealed stranded bare copper
Connectors:
1 Lenco LC40 Male Black Connector and 1 Female Lenco LC40 Black Connector
Specifications*:
Size: 1/0
Conductor Strand: 990/30
Outside Diameter: 14.22 mm / 0.560 inches
Weight: 0.425 lbs per ft
Current Amps: 50ft = 350 AMPS - 100ft = 250 AMPS
Resistance Ohms/1000': .110
Stocked | Yes |
---|---|
Wire Size | 1/0 AWG |
# of Conductors | 1 Conductor |
Conductor Material | Bare Copper |
Stranded or Solid | Stranded |
O.D. (Inches) | 0.56 |
