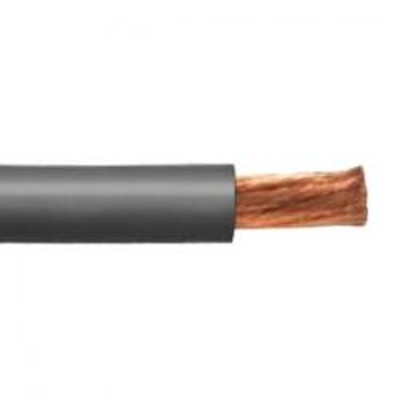

1/0 Stage Lighting Cable UL/CSA

SKU
SLC1s0-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 1' to maximum 490'. Please call for longer put ups.

Color:
Black

Applications:
Portable power systems. Entertainment industry activities such as theater, television, night clubs, motion pictures, mobile communication vans, spotlights and sound systems. Other similar applications that would require temporary power.

Features:
Water-resistant. Sunlight-resistant. Designed to withstand severe environmental conditions. Withstands exposure to oil, acids, alkalies, heat, flame, moisture and chemicals. Meets or exceeds flame test requirements of MSHA, CSA and UL. 600V Rated.

Jacket:
Temperature range: -50ºC to +105ºC

Standards:
UL Listed
CSA Certified
RoHS Compliant

Conductor:
Fully annealed stranded bare copper per ASTM B-172

Specifications*:

Size: 1/0
Conductor Strand: 1032/30
Outside Diameter: 15.62 mm / 0.615 inches
Weight: 0.450 lbs per ft

What is the ampacity of 1/0 Stage Lighting Cable?  260 Amps

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size1/0 AWG
# of Conductors1 Conductor
O.D. (Inches)0.615
Ampacity 260
