$18.75 /ft.

In Stock

1/0-3C w/ Ground Type MC Cable w/ PVC Jacket, Interlocked Armor Power Cable. Cut to length - sold by the Foot.

Min: 20 ft., Max: 500 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

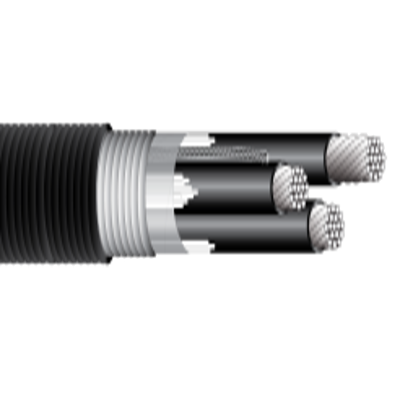

1/0-3C w/ Ground Type MC Cable, PVC Jacket, Interlocked Armor Power Cable

SKU
MCIA1s03C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

1/0-3C w/ Ground, Type MC Cable w/ PVC Jacket
600 Volt UL Type MC, CT USE, 90°C
XLP XHHW-2 Insulation
Aluminum Armor
Copper Conductors

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 2500'. Please call for longer put ups.

Color:
Black

Applications:
For use in harsh environments where maximum conductor protection is required. Used for power, control and lighting circuits in a broad range of commercial and industrial pulp and paper, mining, and petroleum applications. Approved for use in wet or dry locations at 90°C, for installation indoors or outdoors, aerially, in conduits, ducts, cable trays or direct burial in circuits not exceeding 600 volts. May be used in NEC Class I and II, Division 2 and Class III, Division 1 and 2 hazardous locations. UL approved for use at 90°C for continuous operation, 130°C for emergency overload conditions, and 250°C for short circuit conditions. Aluminum interlocked armor cable is recommended as an economical alternative to wire in conduit systems.

Conductor:
Soft bare annealed copper per ASTM B-3, Class B stranding per ASTM B-8

Insulation:
Cross-linked polyethylene (XLP) per UL Standard 44 for Type XHHW-2 conductors

Jacket:
Black sunlight-resistant PVC per UL Standard 1569

Grounding Conductor:
Soft bare annealed copper per ASTM B-3, Class B stranding per ASTM B-8 sized in accordance with UL Standard 1569

Armor:
Aluminum interlocked tape armor per UL 1569 and applicable ICEA standards, also available in galvanized steel armor

Flame Tests:
UL 1581 (70,000 BTU/hr) Flame Test

Color Code:
ICEA Method 4

Connectors:
• Explosion Proof, Class 1 Division 2: 424CU series – aluminum exterior components, nickel-plated brass interior components
• Rain Tight: 416MC series – all nickel-plated brass

Specifications*:

Size: 1/0
Number of Conductors: 3
Conductor Strand: 19
Ground Wire Size: 6 AWG
Minimum AVG Insulation Thickness: 0.045 inches
Minimum AVG Jacket Thickness: 0.050 inches
Armor Diameter: 1.31 inches
Overall Diameter: 1.42 inches
Net Weight: 1.780 lbs per ft
Class 1 Div. 2 Connector Number: 424CU06
Rain Tight Connector Number: 416MC06



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size1/0 AWG
# of Conductors3 Conductors w/ Ground
O.D. (Inches)1.42
