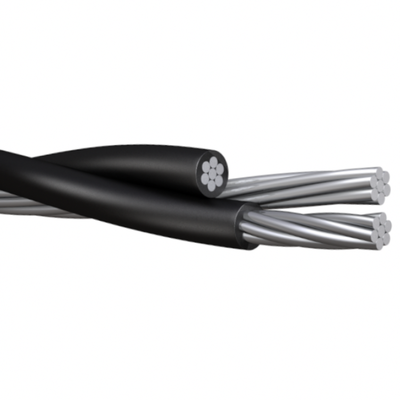

1/0-1/0-1/0 Nerltina Aluminum Triplex Overhead Service Drop Cable. Sold by the foot.
1/0-1/0-1/0 Neritina Aluminum Triplex Overhead Service Drop Cable
Product DetailsLearn everything you want to know about this product to make an informed purchase
Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Aluminum Triplex Overhead cable is designed for use to supply power from utility lines to the consumer weather head. For service at 600 volts or lower (phase to phase) at a conductor temperature of 75°C maximum
Aluminum Triplex Overhead cable has concentric strand or compressed 1350-H19 series aluminum conductor.
Aluminum Triplex Overhead cable has a black cross linked polyethylene (XLP) insulation.
Aluminum Triplex Overhead cable has a bare ACSR messenger. Optional constructions include a messenger of
ICEA S-76 - 474
Phase Conductor-Size: 1/0
Conductor Strand: 7
Insulation Thickness: 0.060 inches
Neutral Conductor-Size: 1/0 AWG
Conductor Strand: 6/1
Allowable Ampacity: 200 Amps
Weight: 0.420 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
|Cable Type||Overhead Service Drop|
|Wire Size||1/0 AWG|
|# of Conductors||3 Conductors|
|Stranded or Solid||Stranded|
|Insulation Material||XLPE - Cross-linked Polyethylene|
