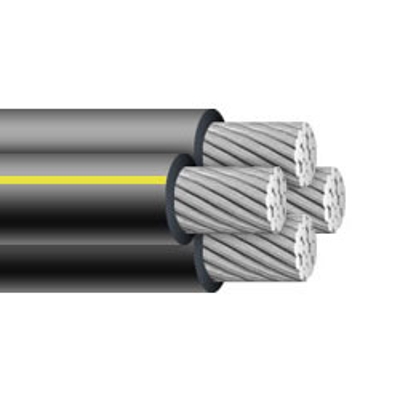

1/0, 1/0, 1/0, & #2 Underground Secondary Distribution Cable
Underground Secondary Distribution Cables are twisted assemblies of alloy 1350 aluminum conductors insulated with cross-linked polyethylene. They are used in various underground applications in secondary distribution circuits.
Compressed Class B compressed stranded, 1350 series aluminum alloy.
Black cross-linked polyethylene (XLPE)
Phase conductors and neutral conductors are cabled together to form a twisted assembly.
- UL 854: Service Entrance Cables
- ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
1/0, 1/0, 1/0, & #2 Quadruplex URD Cable Specifications*:
Phase Conductor-Size: 1/0 AWG
Conductor Strand: 19
Neutral Conductor-Size: 2 AWG
Conductor Strand: 7
Insulation Thickness: 0.080 inches
Outside Diameter: 1.188 inches
Allowable Ampacity-Direct Burial: 198 Amps
Allowable Ampacity-In Duct: 150 Amps
Weight: 0.529 lbs per ft
*Data provided on this page is subject to change based on different manufacturers variances.
