Armored 144 Fiber Optic Cable Gel-Free

Min: 150 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Sterlite Armor Lite Armored 144 Fiber Optic Cable Gel-Free

SKU
FIB144

Product Details

Learn everything you want to know about this product to make an informed purchase

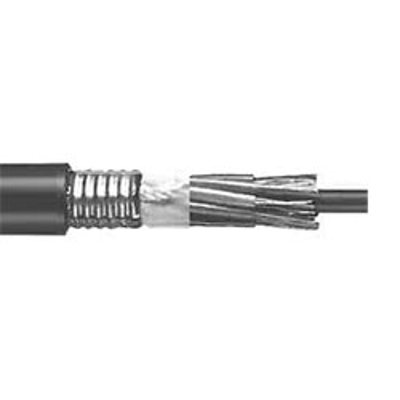

Gel-Free Multitube Single Jacket, Steel Tape Armored 144 Fiber Optic Cable

Cut to length - sold by the foot. Enter the desired footage in the QTY box.
Minimum 100' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Multitube Single Jacket Steel Tape Armored Cables are suitable for direct burial applications as well as for duct applications. GE Free design makes them light weight and easy to install. Steel tape armoring gives protection to the cable against rodent attacks. Steel tape can be used as a cable locator after installation.

Features:
These cables are easy to install due to gel free design. They have strain free fiber due to S-Z stranding. Longitudinal water protection is enabled by water blocking compounds in tube and core. They have easy mid-span access because of multi-tube design. Steel tape armoring provides additional protection against crush and impact. Steel tape can be used as a cable locator.

Mechanical & Environmental Characteristics:
Max tensile strength IEC-60794-1-2-E1 -- 607 lbf
Compression test IEC-60794-1-2-E3 -- 899 lbf /3.93 *3.93 inch
Impact test IEC-60794-1-2-E4 -- ±180°
Torsion test IEC-60794-1-2-E7 -- 443 lbf-inch
Cable bend test IEC-60794-1-2-E11 -- 20 D for 4 turns, 10 Cycles
Temperature cycling test IEC-60794-1-2-F1 -- -40°F to +158°F

Specifications*:

Fiber Count: 144
Outside Diameter: 0.67 inches
Net Weight: 0.161 lbs per ft



*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size30 AWG
O.D. (Inches)0.67
