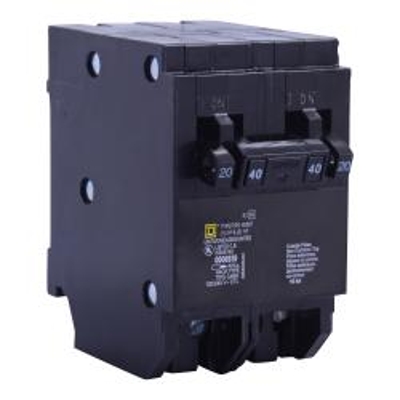

Square D HOMT2020240, Quad Tandem Circuit Breaker, 2 Pole 40 Amp, 1 Pole 20/20 Amp

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Square D HOMT2020240, Quad Tandem Circuit Breaker, 2 Pole 40 Amp, 1 Pole 20/20 Amp

SKU
SQDHOMT2020240

Product Details

Learn everything you want to know about this product to make an informed purchase

Square D HOMT2020240, Mini Plug In, Quad Tandem Circuit Breaker, 2 Pole 40 Amp, 1 Pole 20/20 Amp, 120/240 VAC, 10 kA, 14-6 AWG for 1 cable (Copper), 12-6 AWG for 1 cable (Aluminum), 12-8 AWG for 1 Cable (Aluminum)



AIR Rating
10 kA

Voltage Rating
120/240 VAC

Amp Rating
20/20, 40

Wire Size
14 to 6 AWG for 1 Cable (Copper)
12 to 6 AWG for 1 Cable (Aluminum)
12 to 8 AWG for 1 Cable (Aluminum)


Height
3.13"

Width
2"

Depth
2.98"

Weight
0.85 lbs

Operating Temperature
104 °F (40 °C)

Standards
UL Listed
CSA Certified
HACR


Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
ManufactureSquare D
Number of Poles2
Amps20
