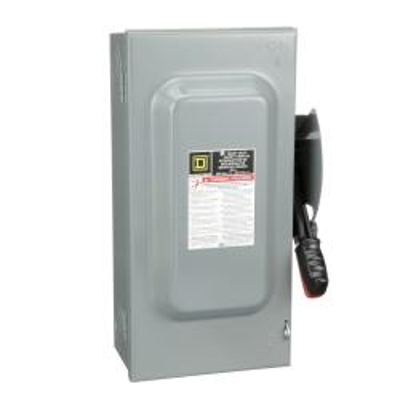

Square D H362N, Single Throw, Heavy Duty Disconnect, 3P4W, 60 Amp, 600VAC/DC

Square D H362N, Single Throw Safety Switch, Heavy Duty Fusible Disconnect, with Neutral, NEMA 1 Steel, 3P4W, 60 Amp, 600VAC/DC



Short-Circuit Current
10 kA H or K
200 kA R, J or L


Voltage Rating
600 VAC/DC

Amp Rating
60

Wire Size
14 AWG to 3 AWG (Copper)
12 AWG to 3 AWG (Aluminum)


Height
17.5"

Width
10.5"

Depth
6.38"

Weight
15 lbs

NEMA Enclosure Rating
NEMA 1 steel

Standards
UL Listed


Spec Sheet

View Spec Sheet for Complete Details
