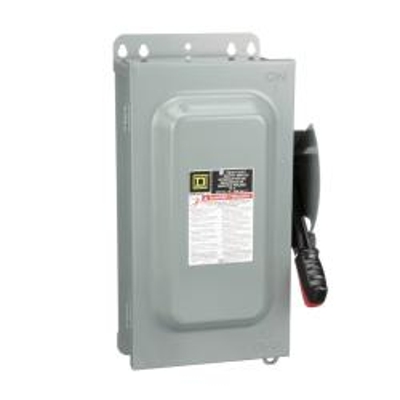

Square D H362AWK, Single Throw, HD Disconnect, Fusible, 60 Amp, 600VAC/DC

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

Square D H362AWK, Single Throw, HD Disconnect, Fusible, 60 Amp, 600VAC/DC

SKU
SQD-H362AWK

Product Details

Learn everything you want to know about this product to make an informed purchase

Square D H362AWK, Single Throw Safety Switch, Heavy Duty Disconnect, Fusible, NEMA 3R/12 galvannealed steel, 3P3W, 60 Amp, 600VAC/DC



Short-Circuit Current
10 kA H or K
200 kA R, J or L



Voltage Rating
600 VAC/DC

Amp Rating
60

Wire Size
14 to 3 AWG Copper
12 to 3 AWG Aluminum



Height
16.5"

Width
10.5"

Depth
7"

Weight
18 lbs

NEMA Enclosure Rating
NEMA 3R/12 galvannealed steel

Standards
UL Listed


Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
ManufactureSquare D
Amps60
