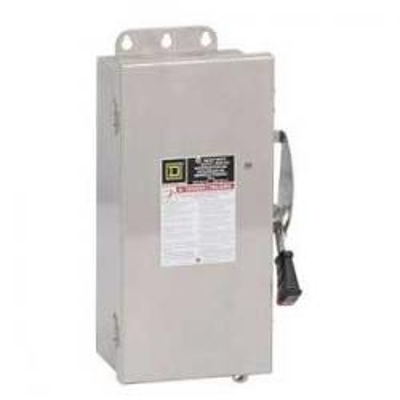

Square D H361DS, Single Throw, HD Disconnect, Fusible, 30 Amp, 600VAC/DC

Square D H361DS, Single Throw Safety Switch, Heavy Duty Disconnect, Fusible, NEMA 3, 3R, 4, 4X, 5, 12, 3P3W, 30 Amp, 600VAC/DC



Short-Circuit Current
10 kA H or K
200 kA R, J or L


Voltage Rating
600 VAC/DC

Amp Rating
30

Wire Size
14 to 6 AWG Copper
12 to 6 AWG Aluminum


Height
14.93"

Width
8.67"

Depth
5.11"

Weight
14 lbs

NEMA Enclosure Rating
NEMA 3, 3R, 4, 4X, 5, 12 Stainless Steel 304

Standards
UL Listed


Spec Sheet

View Spec Sheet for Complete Details
