Sewanee 750 MCM Single Aluminum Conductor 600V URD. Sold by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchase750 MCM Underground Secondary Distribution Cable

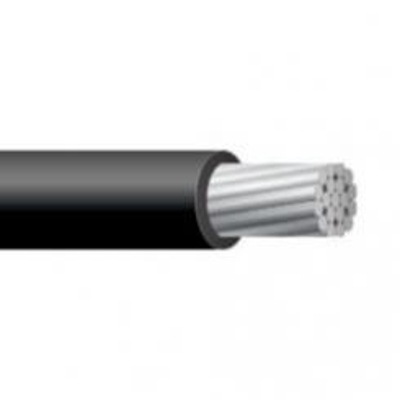

Sewanee - 750 MCM Single Aluminum Conductor 600V URD. Sold by the foot.
Color:
Black.
Description:
Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts. As an option, this cable can provided pre-pulled into duct.
Conductor:
Aluminum 600V URD cable has a concentric strand or compressed 1350-H19 series aluminum conductor.
Insulation:
Aluminum 600V URD cable has a black cross linked polyethylene (XLP) insulation.
Applicable Standards:
- ASTM B-230
- ASTM B-609
- ICEA S-105-692
- RUS ACCEPTED
750 MCM Single Conductor URD Cable Specifications*:
Conductor-Size: 750 MCM
Conductor Strand: Compressed 1350-H19 series aluminum conductor
Outside Diameter: 1.159 inches
Ampacitivity-Directly Buried:667
Weight: 0.853 lbs per ft.
*Data provided on this page is subject to change based on different manufacturers variances. Ampacity 90°C conductor temperatures, 20°C ambient temperature. RHO 90. 100% load factor. Ampacity not for NEC applications. For NEC applications, consult appropriate NEC ampacity section.
| Wire Size | 750 MCM |
|---|---|
| # of Conductors | 1 Conductor |
| O.D. (Inches) | 1.159 |
| Ampacity | 667 |
| Voltage | 600V |
| Insulation Material | XLPE - Cross-linked Polyethylene |
| Direct Burial | Yes |
| Sunlight Resistant | Yes |
