$87.14

In Stock

RG_6/U 60% CMR CATV 75 ohm Coaxial Cable

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Add a length

 Free Shipping on all orders over $1000

RG6 60% CMR Dual Shield Coaxial Cable, 1000ft Spool

SKU
RG6CMRDS

Product Details

Learn everything you want to know about this product to make an informed purchase

**No White Color Boxes until Mid June

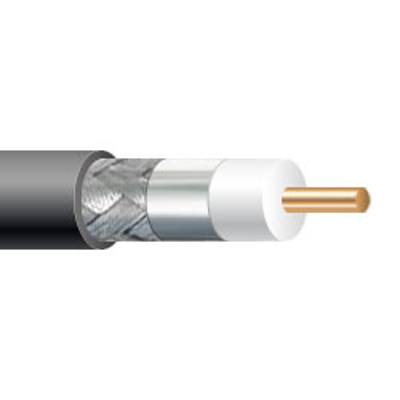

RG_6/U 60% CMR CATV 75 ohm Coaxial Cable

Applicable Standards:
- SCTE IPS_SP_001
- UL 1655, UL 13, UL 444, ROHS

Conductor:
Copper Clad Steel

Insulation:
Foam Polyethylene

Braid Shield:
Aluminum Wire

Jacket:
PVC

Specifications*:

Size: 18 AWG
Outside Diameter: 0.2716 inches
Nominal Cap. pF/ft: 15.5
Vel. of Popogation: 84%
Nominal Impedance: 75

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size18 AWG
O.D. (Inches)0.2716
