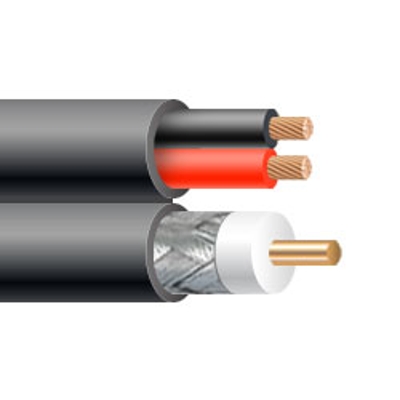

RG-59 + 18/2 BC CMR Siamese Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseRG-59 + 18/2 BC CMR Siamese Cable
Applicable Standards:
Reference Standard: SCTE IPS_SP_001, UL 1655, UL13, UL 444
RG59 CABLE SPECIFICATIONS*
Conductor: Copper Clad Steel
Size: 20 AWG
Diameter: 0.03228 inches
Insulation: Skin Foamed PE
Insulation Thickness: 0.0559 inches
Insulation Diameter: 0.1441 inches
Braid Shield: Copper Clad Aluminum
Braid Shield Coverage: 95%
18/2 POWER CABLE SPECIFICATIONS*
Conductor: Solid Copper
Size: 18 AWG
Number of Conductors: 2
Number of Strands: 17
Jacket: PVC
Jacket Thickness: Power Cable-0.0307 inches / CCTV-0.0314 inches
Cable Diameter: Power Cable-0.1756 inches / CCTV-0.2358 inches
ELECTRICAL PERFORMANCE | |
Frequency(MHz) | Attenuation(dB/100m) |
1 | 1.15 |
50 | 5.71 |
100 | 8.20 |
200 | 11.61 |
400 | 16.73 |
700 | 22.15 |
1000 | 28.87 |
ELECTRICAL CHARACTERISTICS
Temperature Rating: -20°C to 60°C
Impedance: 75 Ohms
Capacitance: 15.5 pF/ft
Conductor DCR@20°C: 28.6 ohms/1000ft
Velocity of Propogation: 84%
ROHS Complaint: Yes
*Data provided on this page is subject to change based on different manufacturers variances.
Stocked | Yes |
---|---|
Wire Size | 30 AWG |
# of Conductors | 3 Conductors |
