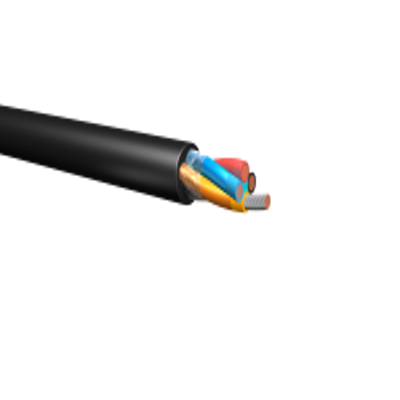

Perfect-A-Flex, 12-8C UL Type TC Cable, Neoprene Jacket, 600V

Min: 50 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Perfect-A-Flex, 12-8C Type TC Cable, Neoprene Jacket, 600V

SKU
PFLEX12-8C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Perfect-A-Flex®, 12-8C UL Type TC Cable, 600 Volt, -54°C to 90°C Exane® Insulation Neoprene Jacket Tinned Copper Conductors

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Black

Applications:
Very flexible cable for use on cable tender systems, festooned cable applications, pendant cable drops, overhead bridge cranes, warehouse stacking cranes, motor- or spring-driven reels, or any tough industrial application that requires both strength and flexibility. Approved for use in cable trays, in raceways supported by a messenger wire, in open air, and for direct burial applications. UL approved for use at 90°C for continuous operation, 130°C for emergency overload conditions, and 250°C for short circuit conditions.

Conductor:
Tinned soft annealed copper per ASTM B-33, Geolay stranding per ASTM B-286

Insulation:
Irradiated cross-linked polyolefin (Exane®

Jacket:
Sunlight-resistant Neoprene per ICEA S-19-81

Insulation Jacket:
Clear Nylon

Flame Tests:
UL and IEEE 383 (70,000 BTU/hr) Flame Test
ICEA (210,000 BTU/hr) Flame Test
CSA FT4 Flame Test
 Individual conductors pass the UL VW-1 Flame Test

Additional Standards:
UL Type TC tray cable per NEC Article 336
CAN/CSA-C22.2 No. 239-M91 type CIC

Color Code:
Black, Red, Blue, Orange, Yellow
Control Sizes – ICEA Method 1, Table E-2

Specifications*:

Size: 12 AWG
Number of Conductors: 8
Jacket Thickness: 0.070 inches
Outside Diameter: 0.658 inches
Weight: 0.31 lbs per ft

More Information
Wire Size12 AWG
# of Conductors5 Conductors
O.D. (Inches)0.51
