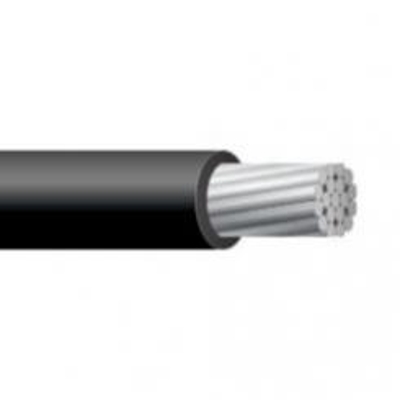

4 AWG Mercer URD Direct Burial Cable - Single Aluminum Conductor

SKU URDM4600

$

1.140000

1.140000

/ft
How will you purchase this wire?
1.140000 1.140000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

4 AWG Mercer URD Direct Burial Cable - Single Aluminum Conductor

Color Length (ft.) Price
Black

Length (ft.)

$1.14
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$570.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    4 AWG

  • # of Conductors

    1 Conductor

  • O.D. (Inches)

    0.345

  • Ampacity

    140

  • Voltage

    600V

  • Insulation Material

    XLPE - Cross-linked Polyethylene

  • Direct Burial

    Yes

  • Sunlight Resistant

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

4 AWG Underground Secondary Distribution Cable

Mercer - 4 AWG Single Aluminum Conductor 600V URD. Sold by the foot.

Color:
Black.

Description:
Aluminum 600V URD cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts. As an option, this cable can provided pre-pulled into duct.

Conductor:
Aluminum 600V URD cable has a concentric strand or compressed 1350-H19 series aluminum conductor.

Insulation:
Aluminum 600V URD cable has a black cross linked polyethylene (XLP) insulation.

Applicable Standards:
- ASTM B-230
- ASTM B-609
- ICEA S-105-692
- RUS ACCEPTED

4 AWG Single Conductor URD Cable Specifications*:

Conductor-Size: 4 AWG
Conductor Strand: Compressed 1350-H19 series aluminum conductor
Outside Diameter: .345 inches
Ampacitivity-Directly Buried: 140
Weight: 0.0630 lbs per ft.



*Data provided on this page is subject to change based on different manufacturers variances. Ampacity 90°C conductor temperatures, 20°C ambient temperature. RHO 90. 100% load factor. Ampacity not for NEC applications. For NEC applications, consult appropriate NEC ampacity section.
