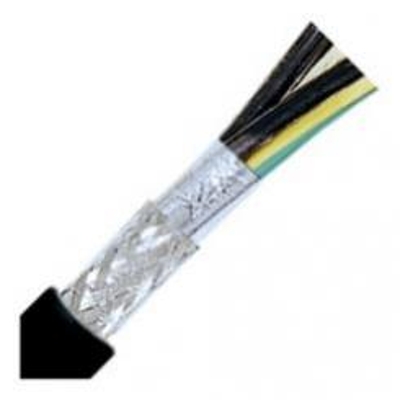

Lapp 2216030, 16 AWG 3/C Shielded Flexible Tray Cable, TC-ER, UL/CSA

SKU LAP2216030

$

2.720000

2.720000

/ft
How will you purchase this wire?
2.720000 2.720000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Lapp 2216030, 16 AWG 3/C Shielded Flexible Tray Cable, TC-ER, UL/CSA

Color Length (ft.) Price
N/A

Length (ft.)

$2.72
add Add a length
Grouped product items
Color Length (ft.)
N/A Length 500 ft.
$1,360.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    16 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.35 in.

  • Manufacture

    Lapp

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
ÖLFLEX® TRAY II CY is an industrial grade tray cable with superior oil performance for long cable life. It has a pressure-extruded jacket and fine copper stranding for excellent flexibility, making it much easier to pull through tray. With UL TC-ER approval, no conduit is needed so you can reduce material costs along with saving on labor. ÖLFLEX® TRAY II CY has Lapp’s new double laminated foil tape and tinned copper braid shield for improved effectiveness.

Applications:
Direct burial rated. Industrial plant expansions; automotive plants; tray wiring. Places where tray cables are used.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Features:
• Oil-resistant pressure-extruded PVC jacket for improved exibility
• Direct Burial & UV Resistant
• Easier to pull than standard tray cables, minimizing labor costs
• UL TC-ER approval to reduce material costs; no conduit is needed
• Black numbered conductors for easy identification

Jacket:
Specially formulated oil-resistant black PVC

Standards:
UL, ULTC, CSA, CE, RoHS, NFPA

Conductor Material:
Finely stranded bare copper

Insulation  Material:
Specially blended PVC/nylon

Shielding:
Double laminated foil tape; tinned copper braid (70% coverage)

Color Code:
Black with white numbers, plus green/yellow ground

Specifications*:

Size: 16 AWG
Conductors: 3
Temperature Rating: -40C to +90C
Voltage: 600/1000 Volt
Outside Diameter: 0.350  inches
Weight: 0.097 lbs per ft
