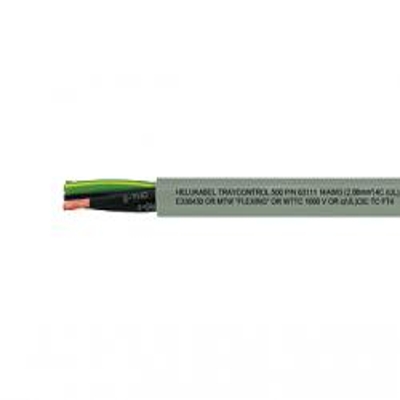

Helukabel 62844, 14-4C Traycontrol 500, Shielded, Oil Resistant, Flexible Tray Cable 600V

SKU
HEL62844-FT

Product Details

Learn everything you want to know about this product to make an informed purchase



General Description
HELUKABEL TRAYCONTROL 500-C is a flexible, shielded, and oil-resistant control and power cable. The special combination of TC-ER, PLTC-ER and ITC-ER allows this cable to be used as a connecting cable for machines throughout industrial plants, according to NFPA 79. It is approved for open, unprotected installation in cable trays to the machine. Its outstanding oil resistance (Oil Res I/II) guarantees a long service life in dry, damp and wet industrial environments. Recommended applications: production lines, machine building, switch cabinets, conveyor systems, packaging machines, bottling plants and automotive manufacturing facilities

Applications:
Direct burial rated, production lines, bottling plants, machine construction, switch cabinets, conveyor systems, packaging machines, automotive industry.

Cable structure:
Finely stranded (Cl. K), bare copper acc. to AWG standards Special PVC conductor insulation with transparent nylon coating Conductor identification to DIN VDE 0293 black conductors with continuous white numbering GN-YE conductor, 3 conductors and above in the outer layer Conductors stranded in layers with optimal lay length Foil separator Braided, tinned copper shield, approx. 85% coverage Separator Special PVC outer jacket Gray (RAL 7001) jacket With length marking in feet

Properties:
Self-extinguishing and flame retardant according to CSA FT4 Tests UL: CSA: Note Advantages Highly flexible, easy to install Available on request With blue conductors (DC) With red conductors (AC) Black or TPE outer jacket UV-resistant Direct burial rated

Specifications:

Size: 14 AWG
Conductors: 4
Temperature Rating: UL+CSA TC -40°C to +90°C, UL/AWM -40°C to +90°C, flexing -40°C to +90°C
Voltage: TC 600 V, AWM 1000 V, WTTC 1000 V
Outside Diameter: 0.417  inches
Weight: 0.115 lb per ft

More Information
Wire Size30 AWG
# of Conductors4 Conductors
