$660.00
In Stock

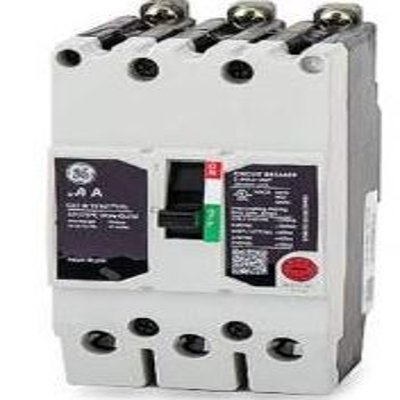

GE TEYL3025B, Bolt On, Circuit Breaker, 3 Pole, 25 Amp, 277/480 VAC, 65 kA
Product Details
Learn everything you want to know about this product to make an informed purchaseGE TEYL3025B, Bolt On, Circuit Breaker, 3 Pole, 25 Amp, 277/480 VAC, 65 kA, 10 AWG to 4 AWG (Copper, Aluminum)
Description
The TEY family of circuit breakers (TEY, TEYF, TEYD, TEYH, and TEYL) are one-inch wide per pole, compact, bolt-on circuit breakers for use on grounded 480Y/277 Vac systems, and are typically installed within Lighting Panelboards, including GE A-Series.
Max. AIR Rating
65 kA
Voltage Rating
277/480 VAC
250 VDC
Amp Rating
25
Phase Connection
ABC
Wire Size
10 AWG to 4 AWG (Copper, Aluminum)
Length
5.20"
Width
3.00"
Depth
3.00"
Standards
UL Listed, cUL
CSA Certified
Spec Sheet
View Spec Sheet for Complete Details| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| Manufacture | GE |
| Mounting Type | Bolt On |
| Number of Poles | 3 |
| Amps | 25 |
