Commscope 3-553079-4, 12/3C Shielded, Undercarpet Flat Power Cable, 100 ft Rolls

Commscope 3-553079-4, 12/3C Shielded, Undercarpet Flat Power Cable, 100 ft Rolls

SKU
3-553079-4

Product Details

Learn everything you want to know about this product to make an informed purchase

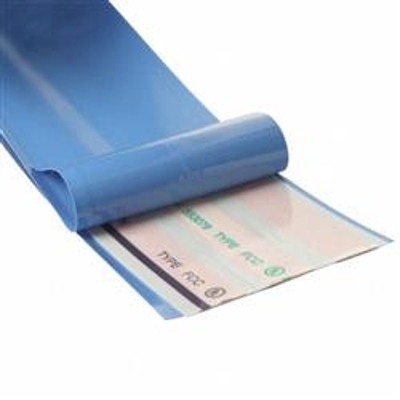

Commscope 3-553079-4, 12/3C Shielded, Undercarpet Flat Power Copper Cable, white/green/black, 100 ft Rolls

Description
Undercarpet cable with isolated ground is for use with sensitive computer equipment

Construction Materials
Conductor Material  - -  Bare Copper
Insulation Material  - -  PVC

Dimensions
Cable Length      30 m   |   100 ft
Height Over Jacket      1.300 mm   |   0.051 in
Width Over Jacket      70.570 mm   |   2.778 in

Electrical Specifications
Current Rating, maximum      20.0 A @ 20 °C
Safety Voltage Rating      300 V

Environmental Specifications
Environmental Space      Indoor
Safety Standard      CSA   |   UL

General Specifications
Cable Type      FCC
Conductor Gauge, singles      12 AWG
Conductors, quantity      3
Ground Wire Type      Standard
Jacket Color      Blue
Jacket Color, singles      Black   |   Green   |   White

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

More Information
Wire Size30 AWG
# of Conductors3 Conductors
