CAT5E CMP Plenum Rated, 1000ft Spool

SKU CAT5P-EA

$

225.000000

225.000000

/ft
How will you purchase this wire?
225.000000 225.000000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

.... .... .... .... .... .... ....

Multiple lengths can be selected

Each
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

CAT5E CMP Plenum Rated, 1000ft Spool

Grouped product items
Color Length (ft.)
Black Length Each ft.
$225.00
Green Length Each ft.
$225.00
Gray Length Each ft.
$225.00
Orange Length Each ft.
$225.00
White Length Each ft.
$225.00
Yellow Length Each ft.
$225.00
Blue Length Each ft.
$225.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    8 Conductors

  • # of Pairs

    4 Pair

  • O.D. (Inches)

    0.2

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

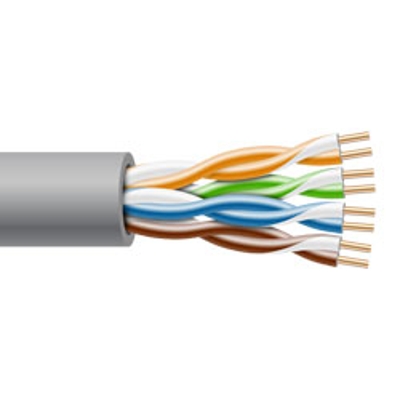

24 AWG Cat 5E Plenum, High Performance Data Cable

Applicable Standards:
- ETL Listed Type CMP
- C(ETL) listed CMG FT6
- ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
- ROHS Compliant
- ATM 155 Mbps
- Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
- 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)
- 16 Mbps Token Ring™ (IEEE 802.5)

Conductor:
24 AWG solid bare annealed copper

Insulation:
Polymer Alloy (FEP)

Jacket:
Low-Smoke, Flame-Retardant PVC
-20°C to +75°C

Color Code:
- Pair 1: Blue-White/Blue
- Pair 2: Orange-White/Orange
- Pair 3: Green-White/Green
- Pair 4: Brown-White/Brown

Specifications*:

Size: 24 AWG
Number of Pairs: 4
Rip Cord: Yes
Outside Diameter: 0.200 inches

*Data provided on this page is subject to change based on different manufacturers variances.
