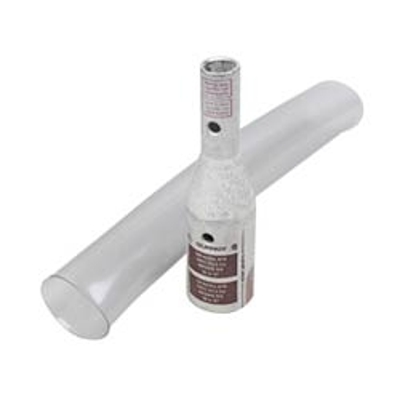

Burndy YSR44FX31LTCKITC, In-Line Reducer Splice Kit, 750 MCM to 350 MCM, w/ Clear Heat Shrink and inspection window.
Burndy YSR44FX31LTCKITC, In-Line Reducer Splice Kit, 750 to 350, w/ Clear Heat Shrink
Product Details
Learn everything you want to know about this product to make an informed purchaseBurndy YSR44FX31LTCKITC -- In-Line Reducer Splice Kit, 750 MCM Flex (A) to 350 MCM Code (B) w/ Clear Heat Shrink and inspection window.
Description:
Burndy Type YSR-TC reducing splice kits provide for splicing two different cable sizes with inspection holes. The larger conductor is inserted first and butts against the centre of the connector where the smaller barrel begins. Constructed from seamless, high conductivity electrolytic copper tubing for maximum conductivity, and tin plated to resist corrosion.
Color Code:
Side A Yellow, Side B Red
Standards:
RoHS Compliance
Clear Heat Shrink -- UL224 VW1
Electrical Ratings:
KVA: 35 kV
Minimum Voltage: 600
Maximum Voltage: 35000
Specifications:
Size: 750 MCM Flex (A) to 350 Code (B)
Material: Copper
Plating Type: Electro Tin Plated
Barrel A size: 2.09 inches, Wire Strip Length (1.96 inches)
Barrel B Size: 1.49 inches, Wire Strip Length (1.41 inches)
Spec Sheet
View Burndy Spec Sheet for Complete Details| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
