$1.44 /ft.

In Stock

Belden 9536 24 AWG 6 Conductor Overall Foil Shield Computer Cable

Min: 50 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 9536 24/6C Overall Foil Shield Computer Cable

SKU
BEL9536-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

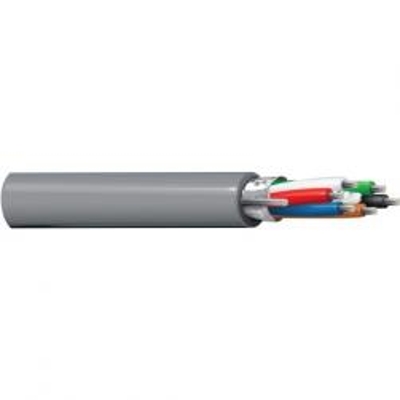

Belden 9536 - 24 AWG stranded (7x32) tinned copper conductors, conductors cabled, semi-rigid PVC insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 9536 - Specifications
Size:24AWG
Conductors:6
Conductor Material:Tinned Copper
Outside Diameter:.209 inches
Jacket Color:Chrome
Jacket Material:PVC (Polyvinyl Chloride)



More Information
Wire Size24 AWG
# of Conductors6 Conductors
O.D. (Inches)0.209 in.
Ampacity1.75
ManufactureBelden
