$2.65 /ft.

In Stock

Belden 9314 14 AWG 1-Pair Multi-Conductor Power Limited Tray Cable, PLTC 300V. Cut by the foot.

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 9314 14 AWG 1-Pair Shielded Multi-Conductor Power Limited Tray Cable, PLTC 300V

SKU
BEL9314-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description

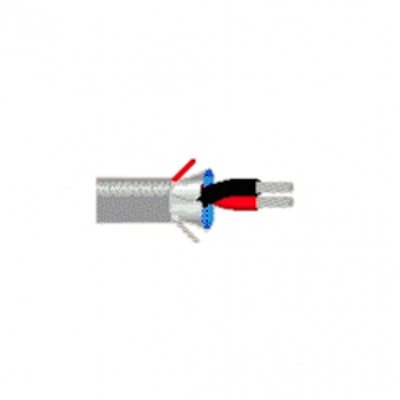

Belden 9314 14 AWG pairs stranded (42x30) tinned copper conductors, twisted pairs, overall Beldfoil® shield (100% coverage), PVC insulation, PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 9320 Specifications
Conductor Size AWG: 14AWG
Conductor Material: Tinned Copper
Outside Diameter: .324in
Jacket Color: Chrome
Jacket Material: PVC (Polyvinyl Chloride)



More Information
Wire Size14 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
O.D. (Inches)0.324
Ampacity13
Sunlight ResistantYes
ManufactureBelden
