Belden 88760 18 AWG 1 Singe Pair FEP Shield 300V

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 88760 18 AWG Multi-Conductor Single Pair Shielded FEP Insulation 300V

SKU
BEL88760-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

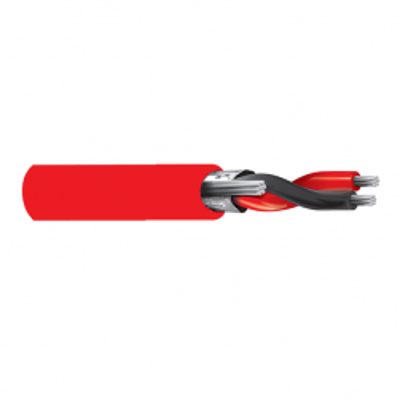

Belden 88760 18 AWG stranded (19x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, FEP jacket.

Spec Sheet

Belden 8760 Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 18AWG
Conductor Material: Tinned Copper
Outside Diameter: .143in
Jacket Color: Red
Jacket Material: FEP (Fluorinated Ethylene Propylene)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
StockedYes
Wire Size18 AWG
# of Conductors2 Conductors
# of Pairs1 Pair
O.D. (Inches)0.143 in.
Ampacity 5.4
ManufactureBelden
Belden_5402FE (90.96 kB)
