Belden 6542FE 22 AWG 3 Pair, Overall Shielded Plenum, Security and Audio Cable

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft.
1,000 ft.
Add a length

 Free Shipping on all orders over $1000

Belden 6542FE 22 AWG 3 Pair, Overall Shielded Plenum, Security and Audio Cable

SKU
BEL6542FE

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

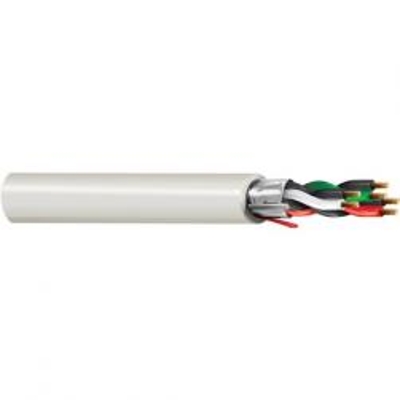

Belden 6542FE - 22 AWG bare copper conductors, Flamarrest® insulation, twisted into pairs, multiple pairs cabled together, overall Beldfoil® shield tape (foil side out) w/drain wire, Flamarrest® jacket with ripcord. Sequential footage marking every two feet.

Suitable Applications
Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details

Belden 6542FE - Specifications
Size AWG:22 AWG
Pairs:3
Conductor Material:Bare Copper
Outside Diameter:.216 inches
Jacket Color:Natural
Jacket Material:LS PVC - Low Smoke Polyvinyl Chloride
Weight:.028 lbs/ft



More Information
Wire Size22 AWG
# of Conductors6 Conductors
# of Pairs3 Pair
O.D. (Inches)0.216
ManufactureBelden
