$333.40

In Stock

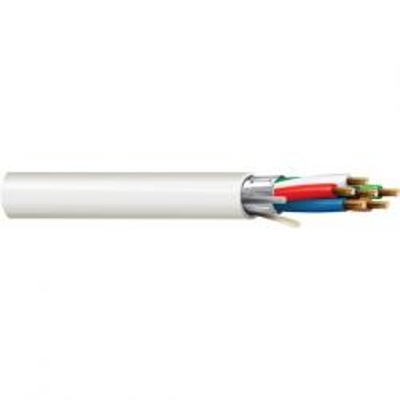

Belden 6504FE 22 AWG 6 Conductor Shielded Plenum Multi-Conductor - Commercial Applications

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
1,000 ft.
Add a length

 Free Shipping on all orders over $1000

Belden 6504FE 22 AWG 6 Conductor Shielded Plenum Multi-Conductor - Commercial Applications

SKU
BEL6504FE

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
Belden 6504FE  - 22 AWG bare copper conductors, Flamarrest® insulation, conductors cabled, overall Beldfoil® tape shield (foil side out) and drain wire, Flamarrest® jacket with ripcord. Sequential footage marking every two feet.

Applications
- Security Systems
- Intercom/PA Systems
- Sound/Audio Systems
- Power-Limited Controls

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 22AWG
Conductor Material: Bare Copper
Outside Diameter: .175in
Jacket Color: Natural
Jacket Material: PVC (Polyvinyl Chloride)



More Information
StockedYes
Wire Size22 AWG
# of Conductors6 Conductors
O.D. (Inches)0.175
Ampacity 2
ManufactureBelden
Belden_5402FE (90.96 kB)
