    Belden 6302FC 18/4C, FEP Insulation, Plenum, Security Cable, Shielded

    Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    500 ft.
    1,000 ft.
    Add a length

     Free Shipping on all orders over $1000

    Belden 6302FC 18/4C, FEP Insulation, Plenum, Security Cable, Shielded

    SKU
    BEL6302FC

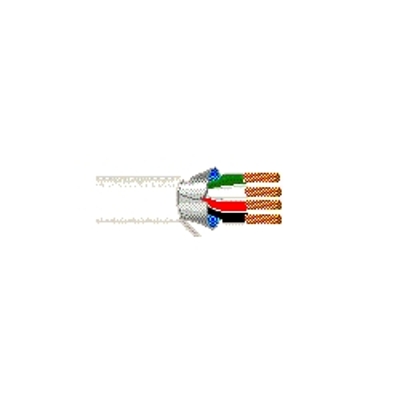

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 6302FC - 18 AWG bare copper conductors, FEP insulation, cabled with a Beldfoil® shield tape and drain wire, Flamarrest® jacket.


    Applications
    - Security Systems
    - Intercom/PA Systems
    - Sound/Audio Systems


    Spec Sheet

    Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)

    Specifications
    Conductor Size AWG:18 AWG
    Conductors: 4
    Conductor Material:Bare Copper
    Insulation Material:FEP - Fluorinated Ethylene Propylene
    Stranding:7
    Outside Diameter:.179 in
    Jacket Color:Natural
    Jacket Material:LS PVC - Low Smoke Polyvinyl Chloride
    Weight:.036 lbs/ft



    More Information
    Wire Size18 AWG
    # of Conductors4 Conductors
    O.D. (Inches)0.179
    ManufactureBelden
