Belden 5201FE  16 AWG 3 Conductor Shielded Commercial Audio System Cable

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft.
1,000 ft.
Add a length

 Free Shipping on all orders over $1000

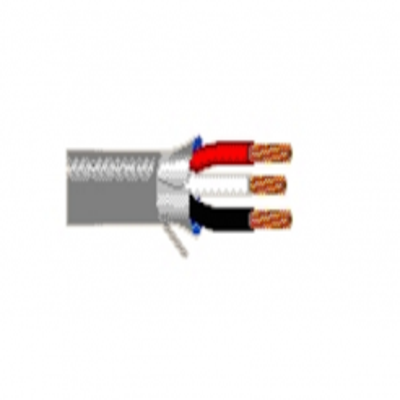

Belden 5201FE 16 AWG 3 Conductor Shielded Commercial Audio System Cable


Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
Belden 5201FE 16 AWG bare copper conductors, PP insulation, conductors cabled, Beldfoil® shield tape (foil side out) with drain wire, PVC jacket with ripcord, sequential footage marking every two feet.

Spec Sheet

Belden 5300FE Spec SheetView Spec Sheet for Complete Details (PDF)

Conductor Size AWG: 3-16AWG
Conductor Material: Bare Copper
Outside Diameter: .191in
Jacket Color: Gray
Jacket Material: PVC (Polyvinyl Chloride)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size16 AWG
# of Conductors3 Conductors
O.D. (Inches)0.191
Ampacity 6.25
Belden_5402FE (90.96 kB)
